REMARKS :
#

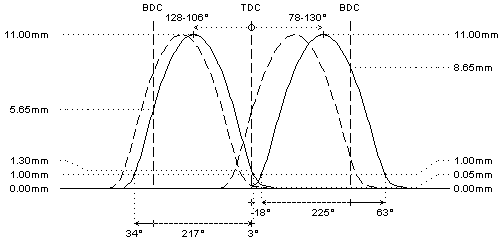

- camshafts for use in BDE (2.8L) engines with VVT sprocket on intake and exhaust
- ONLY for replacement of OE part number combination "022 109 102A" (intake) + "022 109 101C" (exhaust)
- camshaft installation position: intake at full retard / exhaust at full retard
- front cylinders (2-4-6) have long duration intake / short duration exhaust profiles
- rear cylinders (1-3-5) have short duration intake / long duration exhaust profiles
#
This is a very complex engine. The camshafts should only be fitted by experienced professionals who have the tools, skills and patience for correct installation, verification and adjustment of the timing events and all related parts.
#
ECU reprogramming required
#
- intake valve: 1.1mm extra opening at TDC
-
exhaust valve: 0.8mm extra opening at TDC
CAREFULLY CHECK VALVE TO PISTON CLEARANCE
