Cat Cams 7607326 for 12V VR6
Cat Cams 7607326 for 12V VR6

Our Price: $561.99


Product Code: CAT7607326
Qty:

Description

7607326
turbo conversion
Volkswagen AAA
VR-6cyl 2.8L 12v DOHC (DTH/DTH)
Save to PDF
intake
exhaust

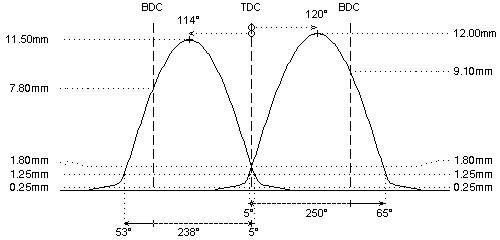

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 295 degrees
284 degrees
duration @ 1.0mm
: 250 degrees
238 degrees
valve lift
: 12.00mm
11.50mm
cam lift
:
lobe angle
: 120 degrees
114 degrees
timing @ 1.0mm
: 5 degrees / 65 degrees
53 degrees / 5 degrees
valve lift @ TDC
: 1.80mm
1.80mm
parts setup:
cam wheels :
: View TVW034
: View TVW034
follower
: View CC005
: View CC005
valve lash
: View TS102
: View TS102
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-E99860
: View PAC-E99860
interior spring
: View PAC-I99860
: View PAC-I99860
fitted load / length
: 31kg @ 33.0mm
: 31kg @ 33.0mm
max. load / lift
: 99kg @ 13.0mm
: 99kg @ 13.0mm
REMARKS :
#
check interference between valve seal and retainer over 10,5mm lift
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15 degrees before TDC on exhaust, and after TDC on intake
#
stand alone ECU based on throttle position sensor required
